In Stock

Shipping Weight: .005 lb.

HWS7198
Terminal Block Pluggable
2 Position
14-22 AWG Wire Size
Interlocking Type
Mates with 1.3mm (.05")
Round Post Header
5.0mm (.197") Centerline
13.6mm (.54") Height
11.0mm (.43") Depth
Blue Color Insulator
(click for detailed image/info)

Quantity Discounts
QuantityPrice
1+$0.55
50+$0.52
100+$0.494
200+$0.475
500+$0.46





In Stock

Shipping Weight: .0075 lb.

HWS7199
Terminal Block Pluggable
3 Position
14-22 AWG Wire Size
Interlocking Type
Mates with 1.3mm (.05")
Round Post Header
5.0mm (.197") Centerline
13.6mm (.54") Height
11.0mm (.43") Depth
Blue Color Insulator
(click for detailed image/info)

Quantity Discounts
QuantityPrice
1+$0.80
50+$0.77
100+$0.75
200+$0.72
400+$0.694





In Stock

Shipping Weight: .001 lb.

HWS4697
Terminal Block Header
2 Position Straight
5.0mm(.197") Pin Spacing
1.3mm(.05") Round Post
Black Insulator
(click for detailed image/info)

$0.20





In Stock

Shipping Weight: .0015 lb.

HWS4698
Terminal Block Header
3 Position Straight
5.0mm(.197") Pin Spacing
1.3mm(.05") Round Post
Black Insulator
(click for detailed image/info)

$0.29





In Stock

Shipping Weight: .01 lb.

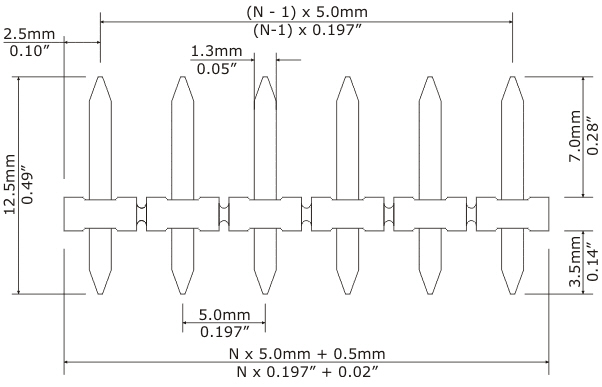

HWS4670
Terminal Block Header
24 Position Straight
Snappable Pin Strip
5.0mm(.197") Pin Spacing
1.3mm(.05") Round Post
Black Insulator
(click for detailed image/info)

Quantity Discounts
QuantityPrice
1+$1.58
20+$1.36
50+$1.24
100+$1.18
200+$1.09





In Stock

Shipping Weight: .006 lb.

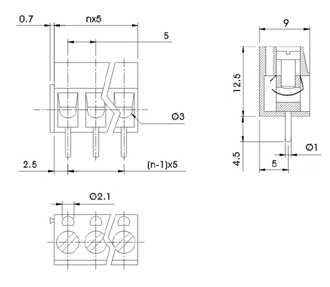

HWS4675
Terminal Block PCB Mount
2 Position Straight

14-22 AWG Wire Size
Side Wire Entry
Interlocking Type
5.0mm (.197") Pin Spacing
12.5mm (.492") Height
9.0mm (.354") Depth
Blue Color Insulator
(click for detailed image/info)

Quantity Discounts
QuantityPrice
1+$0.42
50+$0.398
100+$0.392
200+$0.385
600+$0.374





In Stock

Shipping Weight: .009 lb.

HWS4676
Terminal Block PCB Mount
3 Position Straight

14-22 AWG Wire Size
Side Wire Entry
Interlocking Type
5.0mm (.197") Pin Spacing
12.5mm (.492") Height
9.0mm (.354") Depth
Blue Color Insulator
(click for detailed image/info)

Quantity Discounts
QuantityPrice
1+$0.64
20+$0.62
50+$0.594
100+$0.586
200+$0.575





In Stock

Shipping Weight: 0.007 lb.

HWS2827
Terminal Block PCB Mount
2 Position Right Angle

14-22 AWG Wire Size
Top Wire Entry
Interlocking Type
5.0mm (.197") Pin Spacing
12.6mm (.495") Depth
9.0mm (.354") Height
Blue Color Insulator

$0.88





In Stock

Shipping Weight: 0.0105 lb.

HWS2825
Terminal Block PCB Mount
3 Position Right Angle

14-22 AWG Wire Size
Top Wire Entry
Interlocking Type
5.0mm (.197") Pin Spacing
12.6mm (.495") Depth
9.0mm (.354") Height
Blue Color Insulator

$0.99





In Stock

Shipping Weight: .0315 lb.

HWS2835
Terminal Block PCB Mount
9 Position Right Angle

14-22 AWG Wire Size
Top Wire Entry
Interlocking Type
5.0mm (.197") Pin Spacing
12.6mm (.495") Depth
9.0mm (.354") Height
Blue Color Insulator

$3.42





In Stock

Shipping Weight: .006 lb.

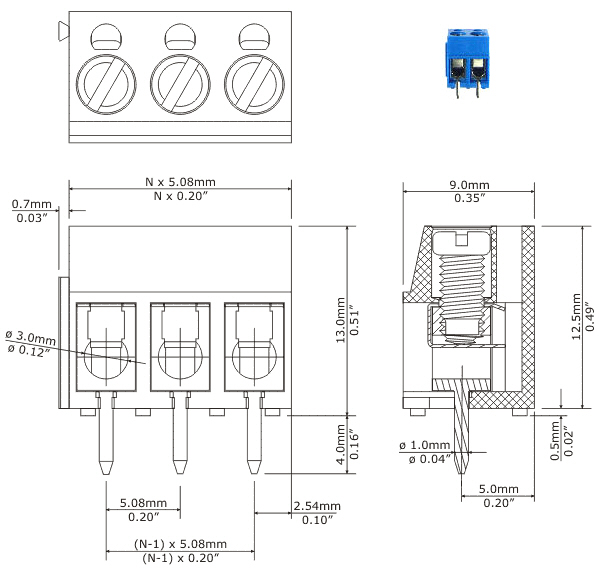

HWS15637
Terminal Block PCB Mount
2 Position Straight

14-22 AWG Wire Size
Side Wire Entry
Interlocking Type
.200" (5.08mm) Pin Spacing
13.0mm (.512") Height
9.0mm (.354") Depth
Blue Color Insulator
(click for detailed image/info)

$0.58





In Stock

Shipping Weight: .009 lb.

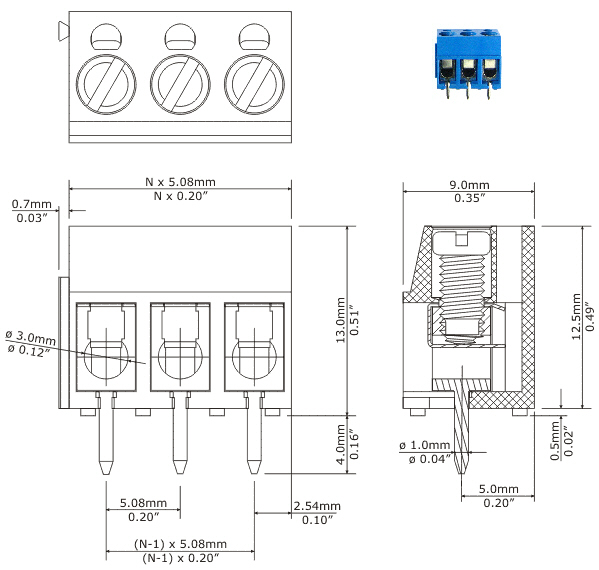

HWS15638
Terminal Block PCB Mount
3 Position Straight

14-22 AWG Wire Size
Side Wire Entry
Interlocking Type
.200" (5.08mm) Pin Spacing
13.0mm (.512") Height
9.0mm (.354") Depth
Blue Color Insulator
(click for detailed image/info)

$0.89





In Stock

Shipping Weight: .26 lb.

HWS16185
Wire Ferrule Assortment Kit 400pc
(click for detailed image/info)
Insulated Cord-End Ferrules
Barrel Lengths 8mm
AWG 22 Orange color 50 pcs
AWG 20 White color 100 pcs
AWG 18 Yellow color 100 pcs
AWG 16 Red color 100 pcs
AWG 14 Blue color 50 pcs

Quantity Discounts
QuantityPrice
1+$32.50
3+$31.60
6+$30.40
10+$29.86





In Stock

Shipping Weight: 1.28 lb.

HWS16174
WIRE FERRULE CRIMPING TOOL
(click for detailed image/info)
Ratcheted Crimping Tool 22-12 AWG
Frame with precision crimping die set
Crimps Insulated & Non-Insulated
Wire Ferrules - Cord End Connectors
US & DIN type pin terminals-ferrules

$42.60





In Stock

Shipping Weight: 2.2 lb.

HWS1880
TOOL & INSULATED TERMINALS KIT
Ratcheted Crimping Tool
(crimps insulated terminals 22-10awg)
Carrying Organizer Case
(with see-through cover)
Insulated Solderless Terminals:
(click for larger image)
Ring terminal (22-16awg stud#6) 50pcs
Ring terminal (16-14awg stud#8) 40pcs
Ring terminal(12-10awg stud#10)20pcs
Butt splice insulated(22-16awg) 30pcs
Butt splice insulated(16-14awg) 20pcs
Butt splice insulated(12-10awg) 15pcs

More Solderless Terminals & Lugs

$52.40





In Stock

Shipping Weight: 1.21 lb.

HWS16161
TOOL & INSULATED TERMINALS KIT
175pcs: Crimper-Stripper-Cutter Tool
& Insulated Solderless Terminals
Ring Terminals: 22-16awg #6 12pcs,
16-14awg #8 12pcs, 22-16awg #10 12pcs,
16-14awg #10 12pcs, 12-10awg #10 5pcs,
12-10awg 1/4" 5pcs, 12-10awg 5/16" 5pcs.
Spade (fork) Terminals: 16-14awg #8 12pcs,
16-14awg #10 12pcs, 16-14awg #6 12pcs,
22-16awg #6 12pcs, 12-10awg #10 5pcs.
Quick Connect Female: 1/4" 22-18awg 12pcs,
1/4" 16-14awg 12pcs, 1/4" 12-10awg 5pcs.
Butt Splice Insulated: 22-18awg 12pcs,
16-14awg 12pcs, 12-10awg 5pcs.


More hand tools - crimpers,
cutters, pliers & wire strippers

$16.45
